Braided Protective Sleeve / Tube


Characteristics

  • Available in Monofilament Polyamide PA 6.6 (Nylon) & Polyester PET yarn in the following dia:
    • 0.22mm
    • 0.25mm
    • 0.28mm
  • Available in various sizes to meet your requirements.
  • Self Extinguishing according to UL-94.
  • Highly Flexible.
  • Halogen Free.
  • Excellent Resistance against
    • Mineral Oils & Greases.
    • Transformer Oil
    • Solvent like Benzene etc.
    • Acid pH>3
  • Permissible Temperature
    • -55 C to 150 C
    • +170 C for short period

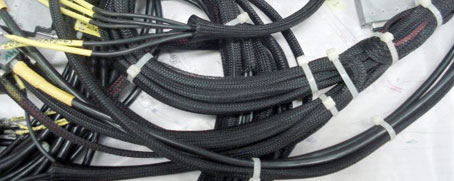

 Braided Protective Sleeve

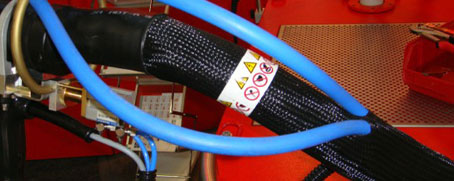

Braided Protective Sleeve

Applications

Productive Sleeve is used for Cable Bunching & Bundling. This also protects wires and cables from wear 'n' tear caused due to mechanical abrasions. This is in expandable form.
Size Minimum
(MM)		 Maximum
(MM)		 WT/100 Mtr.
(GMS.)		 Coil Length
(MTRS.)
08/15 08 15 620 100
10/15 10 15 700 100
11/22 11 22 1160 100
14/20 14 20 1180 100
18/32 18 32 1400 100
22/35 22 35 1540 50
28/40 28 40 1900 50
30/52 30 52 2400 50
